过表达Miro1慢病毒载体的构建及Miro1高表达间充质干细胞稳定转染细胞株的建立与鉴定

陈镜伊 赵玲萍 刘雯丽 习佳飞 梁志欣

陈镜伊, 赵玲萍, 刘雯丽, 习佳飞, 梁志欣. 过表达Miro1慢病毒载体的构建及Miro1高表达间充质干细胞稳定转染细胞株的建立与鉴定[J]. 解放军医学院学报, 2023, 44(4): 408-416. doi: 10.3969/j.issn.2095-5227.2023.04.015
引用本文: 陈镜伊, 赵玲萍, 刘雯丽, 习佳飞, 梁志欣. 过表达Miro1慢病毒载体的构建及Miro1高表达间充质干细胞稳定转染细胞株的建立与鉴定[J]. 解放军医学院学报, 2023, 44(4): 408-416. doi: 10.3969/j.issn.2095-5227.2023.04.015
CHEN Jingyi, ZHAO Lingping, LIU Wenli, XI Jiafei, LIANG Zhixin. Construction of Miro1 overexpression lentiviral vectors and establishment and identification of Miro1Hi-BMSCs stable transfection cell line[J]. ACADEMIC JOURNAL OF CHINESE PLA MEDICAL SCHOOL, 2023, 44(4): 408-416. doi: 10.3969/j.issn.2095-5227.2023.04.015
Citation: CHEN Jingyi, ZHAO Lingping, LIU Wenli, XI Jiafei, LIANG Zhixin. Construction of Miro1 overexpression lentiviral vectors and establishment and identification of Miro1Hi-BMSCs stable transfection cell line[J]. ACADEMIC JOURNAL OF CHINESE PLA MEDICAL SCHOOL, 2023, 44(4): 408-416. doi: 10.3969/j.issn.2095-5227.2023.04.015

过表达Miro1慢病毒载体的构建及Miro1高表达间充质干细胞稳定转染细胞株的建立与鉴定

doi: 10.3969/j.issn.2095-5227.2023.04.015
基金项目: 基础加强计划重点基础研究项目(2021-JCJQ-ZD-077-12)
详细信息
    作者简介:

    陈镜伊,女,在读硕士。Email: chenjingyi301@163.com

    通讯作者:

    梁志欣,男,博士,主任医师,教授。Email: liangzhixin301@163.com

  • 中图分类号: R329.2

Construction of Miro1 overexpression lentiviral vectors and establishment and identification of Miro1Hi-BMSCs stable transfection cell line

More Information
  • 摘要:   背景  线粒体转移是干细胞发挥免疫修复功能的重要机制之一,Miro1是线粒体转移过程的关键蛋白,但其动力学研究欠缺研究模型。  目的  构建过表达Miro1的间充质干细胞稳转细胞株,为线粒体动力学研究间充质干细胞的抗炎修复机制提供细胞模型。  方法  通过PCR扩增目的基因后进行Gibson反应、转化及Gateway等方法构建载体,并对载体进行酶切鉴定。慢病毒感染间充质干细胞后,使用嘌呤霉素进行药物筛选获得稳转细胞株。后续分为三组进行相关鉴定。(1) BMSC组:正常间充质干细胞;(2) Con-BMSC组:慢病毒空载体感染的间充质干细胞;(3) MiroHi-BMSC组:过表达Miro1的慢病毒载体感染的间充质干细胞。通过RT-qPCR、Western blot检测上述三组细胞Miro1的表达水平,并进行划痕试验、水平迁移实验、成骨及成脂诱导分化以鉴定干细胞特性。  结果  所构建的载体完成酶切鉴定,并成功获得过表达Miro1重组慢病毒载体pLV-EGFP:T2A:Puro-EF1A>mRhot1/HA。经mRNA和蛋白水平检测,MiroHi-BMSC组的Miro1表达高于BMSC组和Con-BMSC组(P<0.05),干细胞水平、垂直迁移能力三组间差异无统计学意义(P>0.05),三组干细胞均可成功进行成脂及成骨诱导分化。  结论  通过慢病毒载体成功构建Miro1Hi-BMSCs稳转细胞株,且该稳转株仍保留干细胞特性,可用于间充质干细胞调控线粒体转移的相关研究。

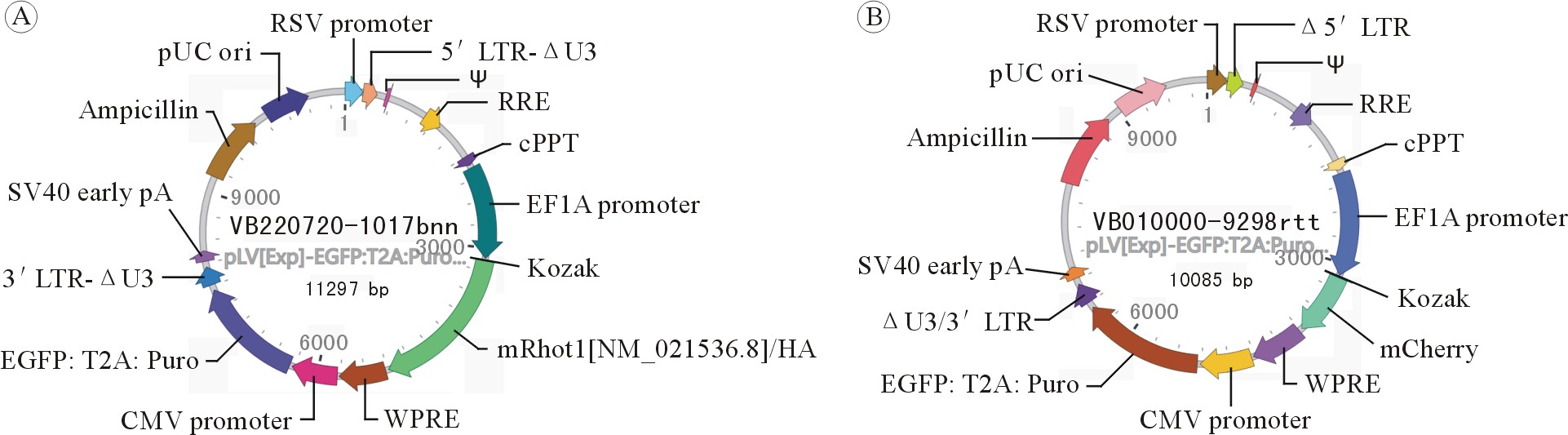

  • 图  1  过表达载体与对照空载体设计图谱

    A:pLV-EGFP:T2A:Puro-EF1A>mRhot1[NM_021536.8]/HA;B:pLV-EGFP:T2A:Puro-EF1A>mCherry

    Figure  1.  Gene mapping of the overexpression and control vectors

    A: pLV-EGFP:T2A:Puro-EF1A>mRhot1[NM_021536.8]/HA; B: pLV-EGFP:T2A:Puro-EF1A>mCherry

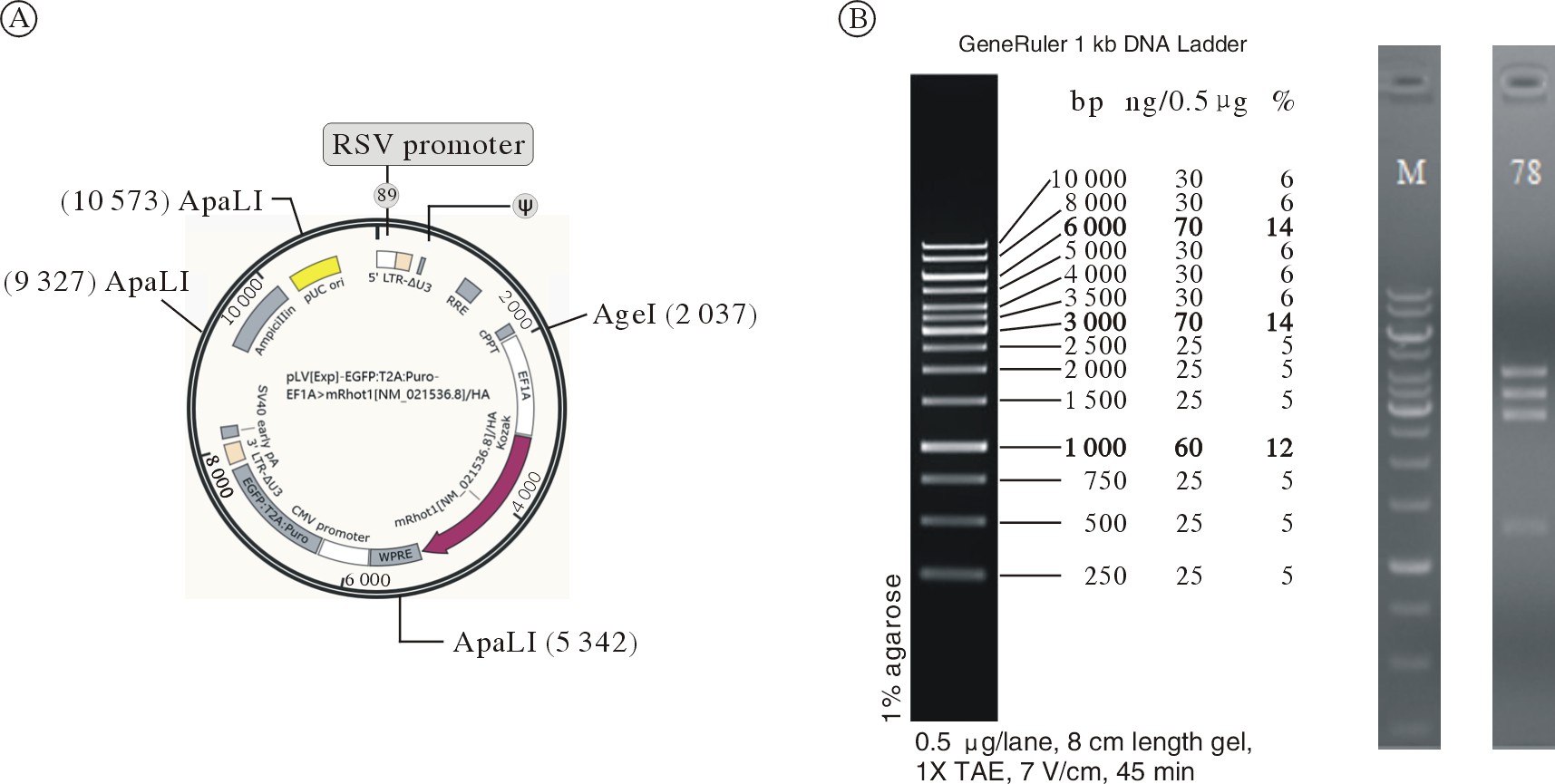

    图  2  终载体的酶切鉴定结果

    A:SnapGene软件查找酶切位点;B:限制性内切酶酶切产物琼脂糖凝胶电泳

    Figure  2.  Identification of the final vector by enzyme digestion

    A: Finding the digestion sites by the SnapGene software; B: Agarose gel electrophoresis map of the products from the enzyme digestion

    图  3  病毒载体感染HEK293T细胞后48 h荧光图(100×)

    A:质粒DNA转染HEK293T细胞包装病毒明场图;B:质粒DNA转染HEK293T细胞包装病毒EGFP荧光图;C:病毒感染HEK293T细胞明场图;D:病毒感染HEK293T细胞EGFP荧光图(MOI=5)

    Figure  3.  Photos of HEK293T cells taken by fluorescence microscopy after 48 h of transduction (100×)

    A: Plasmid DNA transfected virus packaged by HEK293T cells which observed through bright-field microscope; B: Plasmid DNA transfected virus packaged by HEK293T cells which observed through fluorescence microscopy; C: The virus transduced HEK293T cells which observed through bright - field microscope; D: The virus transduced HEK293T cells which observed through fluorescence microscopy (MOI=5)

    图  4  慢病毒载体转染BMSCs荧光图(MOI=40,转染11 d,药筛6 d,200×)

    A:对照慢病毒载体转染BMSCs明场图 ;B:对照慢病毒载体转染BMSCs mCherry荧光图;C:对照慢病毒载体转染BMSCs EGFP荧光图;D:Miro1 过表达载体转染BMSCs明场图;E:Miro1过表达载体转染BMSCs EGFP荧光图

    Figure  4.  Photos of BMSCs taken by fluorescence microscopy after transduction of lentiviral vectors (MOI=40, 11 days after the transduction, 6 days after screening test by puromycin, 200×)

    A: Control lentiviral vectors transduced BMSCs which observed through bright-field microscope; B: Control lentiviral vectors transduced BMSCs which observed through mCherry fluorescence microscopy; C: Control lentiviral vectors transduced BMSCs which observed through EGFP fluorescence microscopy; D: Miro1 protein overexpressed lentiviral vectors transduced BMSCs which observed through bright-field microscope; E: Miro1 protein overexpressed lentiviral vectors transduced BMSCs which observed through EGFP fluorescence microscopy

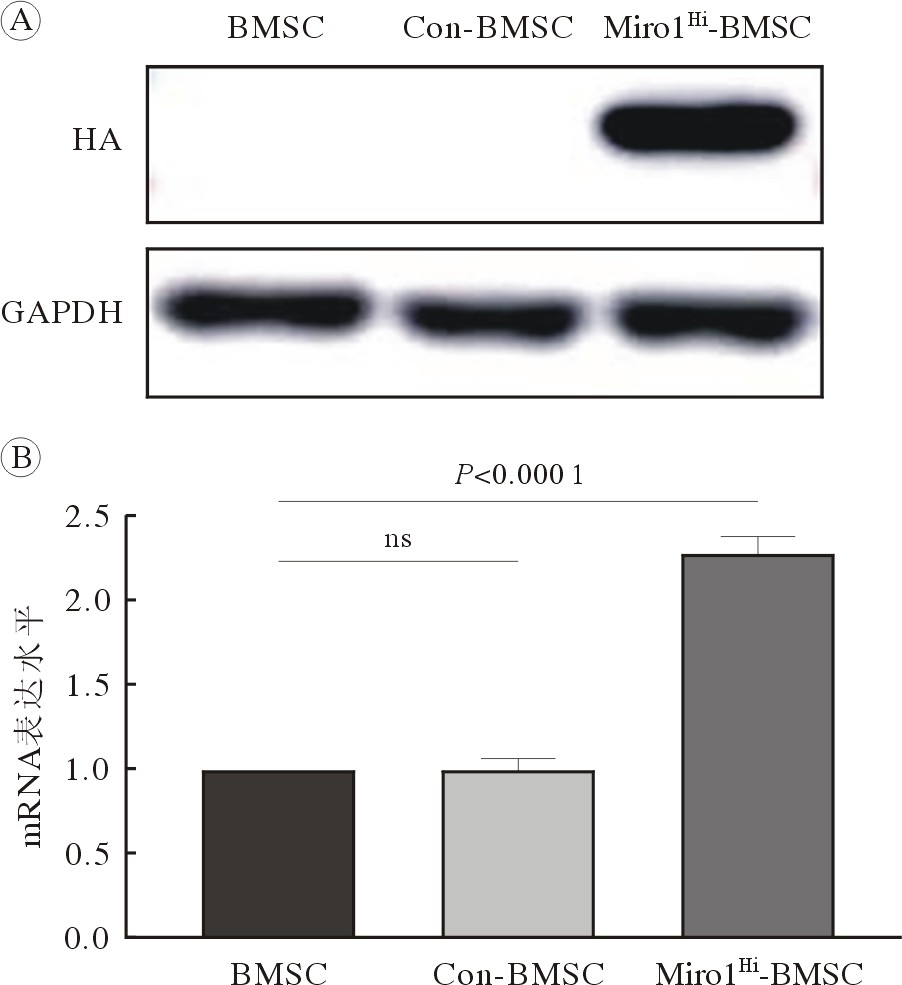

    图  5  BMSC、Con-BMSC及Miro1Hi-BMSC细胞株的Miro1表达水平鉴定

    A:蛋白水平Western blot结果;B:mRNA水平RT-qPCR结果

    Figure  5.  Identification of Miro1 expression levels among groups of BMSC, Con-BMSC and Miro1Hi-BMSC

    A: Western blot results of protein; B: RT-qPCR results of mRNA

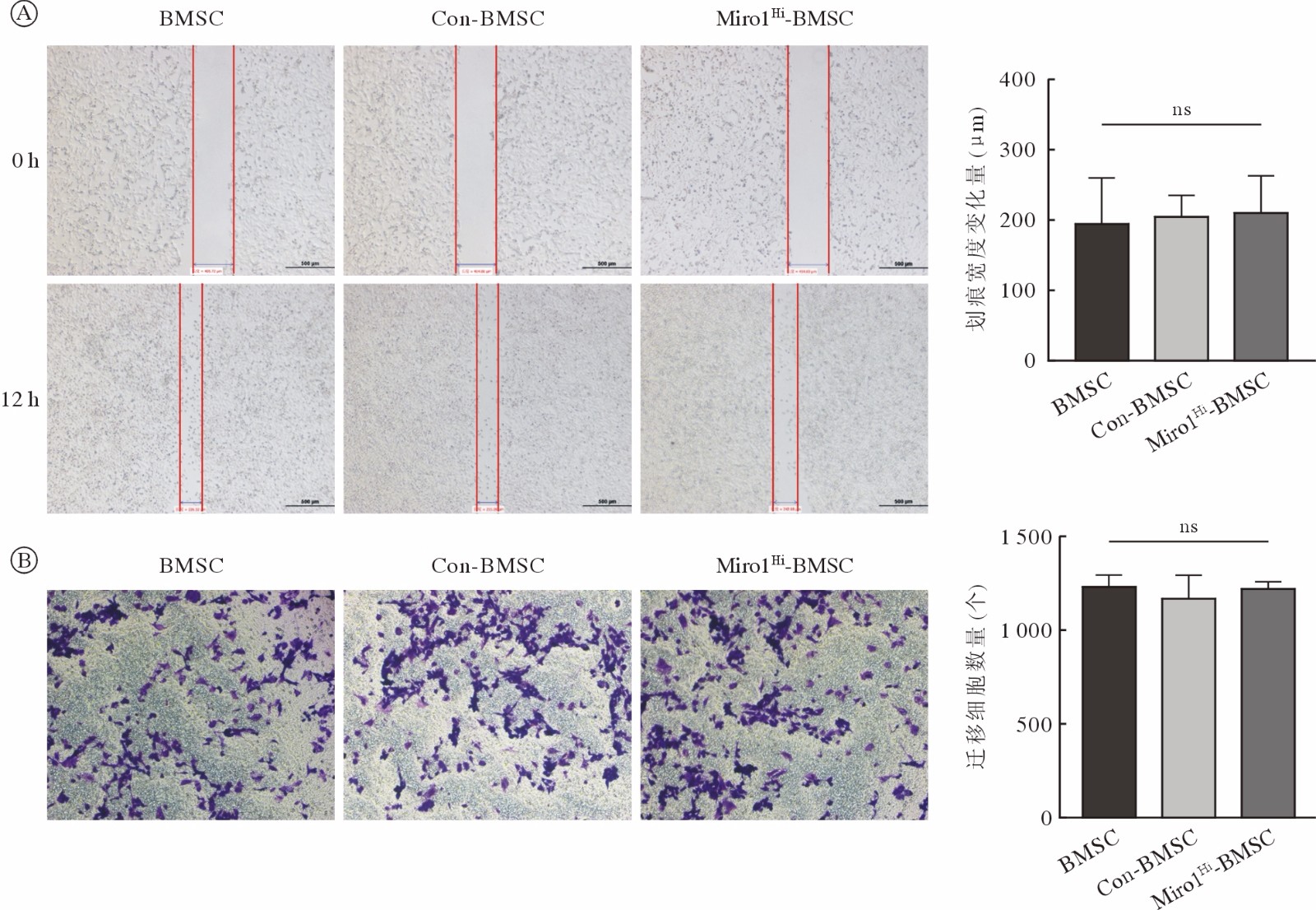

    图  6  BMSC、Con-BMSC及Miro1Hi-BMSC细胞株的迁移能力鉴定

    A:水平迁移实验结果及统计分析(40×),P>0.05;B:垂直迁移实验结果及统计分析(100×),P>0.05

    Figure  6.  Migration capacity identification among groups of BMSC, Con-BMSC and Miro1Hi-BMSC

    A: Results of scratch test and statistical analysis (40×), P>0.05; B: Results of vertical migration test and statistical analysis (100×), P>0.05

    图  7  BMSC、Con-BMSC及Miro1Hi-BMSC细胞株的分化能力鉴定

    A:成骨诱导分化26 d (200×);B:成脂诱导分化20 d (400×)

    Figure  7.  Differentiative capacity identification among groups of BMSC, Con-BMSC and Miro1Hi- BMSC

    A: 26 days after osteogenesis induces differentiation (200×); B: 20 days after adipogenesis induces differentiation (400×)

    表  1  mRhot1引物序列

    Table  1.   Primer sequences of mRhot1

     mRNA引物序列
    mRhot1-FCAACTTTGTACAAAAAAGCAGGCTGCCACCATGCGTGCGGGCCGAGTG
    mRhot1-RTCAAGCGTAATCTGGAACATCGTATGGGTATCGCTGTTTCAGTAGTGCTCTGTAC
    下载: 导出CSV

    表  2  反应体系构成

    Table  2.   Composition of the reaction system

    组分体积/μL
    2⊆SYBR Green PCR MasterMix10.0
    引物0.3
    cDNA3.0
    去离子水6.7
    下载: 导出CSV
  • [1] López-Doménech G,Covill-Cooke C,Ivankovic D,et al. Miro proteins coordinate microtubule- and actin-dependent mitochondrial transport and distribution[J]. EMBO J,2018,37(3): 321-336. doi: 10.15252/embj.201696380
    [2] König T,Nolte H,Aaltonen MJ,et al. MIROs and DRP1 drive mitochondrial-derived vesicle biogenesis and promote quality control[J]. Nat Cell Biol,2021,23(12): 1271-1286. doi: 10.1038/s41556-021-00798-4
    [3] Golan K,Singh AK,Kollet O,et al. Bone marrow regeneration requires mitochondrial transfer from donor Cx43-expressing hematopoietic progenitors to stroma[J]. Blood,2020,136(23): 2607-2619. doi: 10.1182/blood.2020005399
    [4] Han JB,Liu YX,Liu H,et al. Genetically modified mesenchymal stem cell therapy for acute respiratory distress syndrome[J]. Stem Cell Res Ther,2019,10(1): 386. doi: 10.1186/s13287-019-1518-0
    [5] Wang JC,Liu X,Qiu Y,et al. Cell adhesion-mediated mitochondria transfer contributes to mesenchymal stem cell-induced chemoresistance on T cell acute lymphoblastic leukemia cells[J]. J Hematol Oncol,2018,11(1): 11. doi: 10.1186/s13045-018-0554-z
    [6] Ahmad T,Mukherjee S,Pattnaik B,et al. Miro1 regulates intercellular mitochondrial transport & enhances mesenchymal stem cell rescue efficacy[J]. EMBO J,2014,33(9): 994-1010.
    [7] Jackson MV,Morrison TJ,Doherty DF,et al. Mitochondrial transfer via tunneling nanotubes is an important mechanism by which mesenchymal stem cells enhance macrophage phagocytosis in the in vitro and in vivo models of ARDS[J]. Stem Cells,2016,34(8): 2210-2223. doi: 10.1002/stem.2372
    [8] Tang H,Kuhen KL,Wong-Staal F. Lentivirus replication and regulation[J]. Annu Rev Genet,1999,33: 133-170. doi: 10.1146/annurev.genet.33.1.133
    [9] Hotta A,Ellis J. Retroviral vector silencing during iPS cell induction:an epigenetic beacon that signals distinct pluripotent states[J]. J Cell Biochem,2008,105(4): 940-948. doi: 10.1002/jcb.21912
    [10] Fisher CL,Fisher AG. Chromatin states in pluripotent,differentiated,and reprogrammed cells[J]. Curr Opin Genet Dev,2011,21(2): 140-146. doi: 10.1016/j.gde.2011.01.015
    [11] Ng HH,Surani MA. The transcriptional and signalling networks of pluripotency[J]. Nat Cell Biol,2011,13(5): 490-496. doi: 10.1038/ncb0511-490
    [12] Wen S,Zhang HM,Li YS,et al. Characterization of constitutive promoters for piggyBac transposon-mediated stable transgene expression in mesenchymal stem cells (MSCs)[J]. PLoS One,2014,9(4): e94397. doi: 10.1371/journal.pone.0094397
    [13] Liew CG,Draper JS,Walsh J,et al. Transient and stable transgene expression in human embryonic stem cells[J]. Stem Cells,2007,25(6): 1521-1528. doi: 10.1634/stemcells.2006-0634
    [14] Li M,Zhong A,Wu YJ,et al. Transient inhibition of p53 enhances prime editing and cytosine base-editing efficiencies in human pluripotent stem cells[J]. Nat Commun,2022,13(1): 6354. doi: 10.1038/s41467-022-34045-7
    [15] Tseng N,Lambie SC,Huynh CQ,et al. Mitochondrial transfer from mesenchymal stem cells improves neuronal metabolism after oxidant injury in vitro:the role of Miro1[J]. J Cereb Blood Flow Metab,2021,41(4): 761-770. doi: 10.1177/0271678X20928147
    [16] Lahiri V,Klionsky DJ. Functional impairment in RHOT1/Miro1 degradation and mitophagy is a shared feature in familial and sporadic Parkinson disease[J]. Autophagy,2017,13(8): 1259-1261. doi: 10.1080/15548627.2017.1327512
    [17] Safiulina D,Kuum M,Choubey V,et al. Miro proteins prime mitochondria for Parkin translocation and mitophagy[J]. EMBO J,2019,38(2): e99384.
    [18] Birsa N,Norkett R,Wauer T,et al. Lysine 27 ubiquitination of the mitochondrial transport protein Miro is dependent on serine 65 of the Parkin ubiquitin ligase[J]. J Biol Chem,2014,289(21): 14569-14582. doi: 10.1074/jbc.M114.563031
    [19] Hsieh CH,Li L,Vanhauwaert R,et al. Miro1 marks parkinson’s disease subset and Miro1 reducer rescues neuron loss in parkinson’s models[J]. Cell Metab,2019,30(6): 1131-1140. doi: 10.1016/j.cmet.2019.08.023
    [20] Shaltouki A,Hsieh CH,Kim MJ,et al. Alpha-synuclein delays mitophagy and targeting Miro rescues neuron loss in Parkinson’s models[J]. Acta Neuropathol,2018,136(4): 607-620. doi: 10.1007/s00401-018-1873-4
    [21] Conejeros C,Parra V,Sanchez G,et al. Miro1 as a novel regulator of hypertrophy in neonatal rat cardiomyocytes[J]. J Mol Cell Cardiol,2020,141: 65-69. doi: 10.1016/j.yjmcc.2020.03.014
